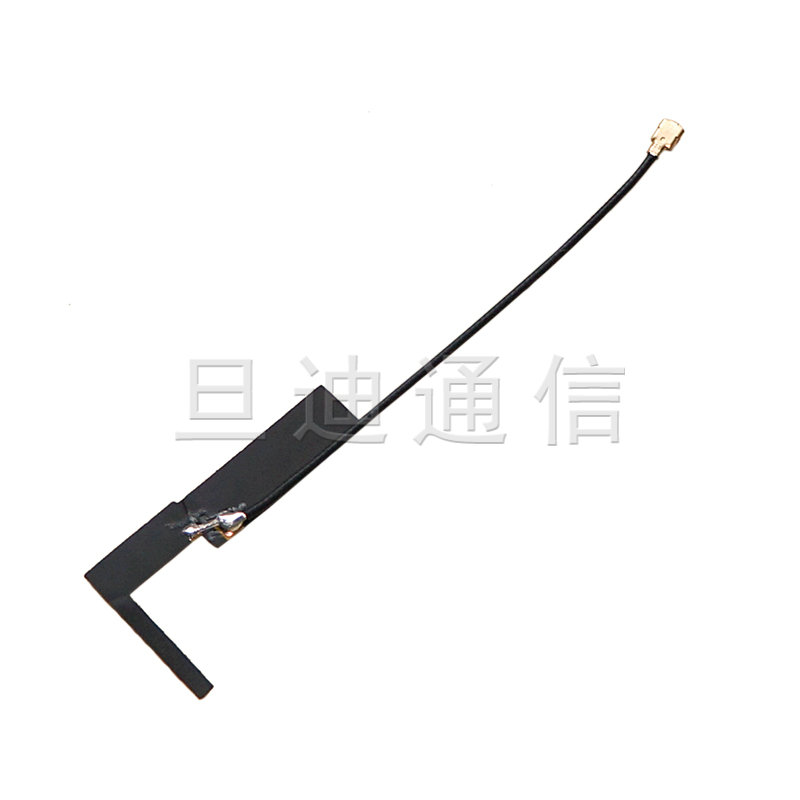

Product Description ： 1、Support WIFI band； 2、Using Pifa, PCB, metal and other carriers, customized debugging； 3、The utility model can be widely used in WIFI remote terminal； Product Introduction ： Antenna FrequencyRange 2400
| Antenna |
Frequency Range |
2400~2483.5MHz |
Peak Gain |
2dBi typ | |
| V.S.W.R | 2.0dB max | |
| Impedance | 50Ω | |
| Polarization | Linear | |
| Mechanical | Cable | RF1.13/RF0.81 |
| Connector | IPX1/2/3/4 or others | |
| Radome Material | Pifa/PCB/ Metal | |
| Environmental | Operating Temperature | -40℃ to +85℃ |
| Relative Humidity | Up to 95℃ | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant |
