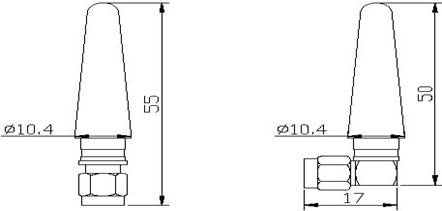

Product Description ： 1、Support GSM/GPRS/3G band； 2、Rod antenna，SMA； 3、The utility model can be widely used in GSM/GPRS/3G remote terminal； Product Dimension ： Product Introduction ： Antenna Frequency Range 824～894 /17
| Antenna |
Frequency Range |
824～894 /1710～1990 MHz 880～960 /1710～1990 MHz 1920～2170 MHz |
Peak Gain |
2dBi typ | |
| V.S.W.R | 2.0dB max | |
| Impedance | 50Ω | |
| Polarization | Linear | |
| Mechanical | Connector | SMA |
| Radome Material | ABS | |
| Environmental | Operating Temperature | -40℃ to +85℃ |
| Relative Humidity | Up to 95℃ | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant |
